48v GPON Interface Card For HUAWEI OLT MA5680T MA5683T MA5608T

Name: 48v GPON Interface Card For HUAWEI OLT MA5680T MA5683T MA5608T
Brand: huawei
Price: 100 USD

Buy cheap 48v GPON Interface Card For HUAWEI OLT MA5680T MA5683T MA5608T product

Brand Name : huawei

Model Number : gpfd

Certification : ce rosh

Place of Origin : china

MOQ : 1pcs

Price : 100us$-1200us$

Payment Terms : T/T, Western Union

Supply Ability : 100pcs/month

Delivery Time : 5-8days

Packaging Details : carton box

Product name : gpfd C+ line card

Type : gpon board

Application : 5680t 5683t 5608t

Power supply : 48v

Wavelength : RX 1310nm, TX 1490nm,

Pon mode : GPON

Contact Now

GPON Board GPFD Line Card with B+ C+ C++ SFP Modules For HUAWEI MA5608T MA5680T MA5683T H803GPFD H805GPFD H806GPFD

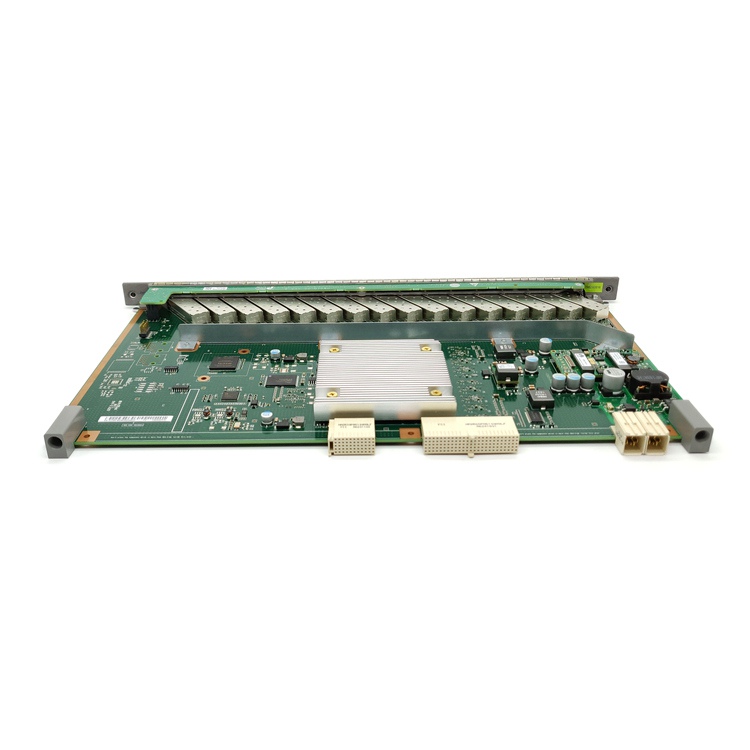

GPFD is a GPON interface card of Huawei OLT, 16-port GPON OLT Interface Board GPFD works together with the optical network terminal (ONT) to provide GPON access services, each GPFD can maximum connect 16*128 GPON subscribers.

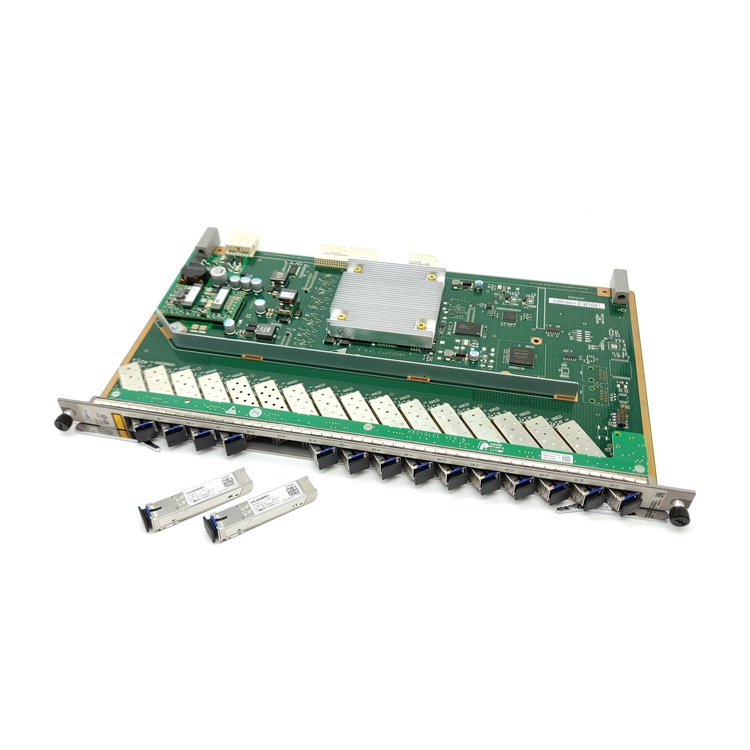

Huawei GPFD Service Board Line Card is 16-port GPON OLT interface board with B+ C+ and C++ SFP module for Huawei SmartAx MA5608T MA5683T MA5680T

GPFD Have Different version H805GPFD / H806GPFD with B+ or C+ SFP module. We Have Huawei GPFD in stock, and can ship to worldwide.

48v GPON Interface Card For HUAWEI OLT MA5680T MA5683T MA5608T

GPFD Specification and Datasheet

Huawei GPFD Service Board Product Specification

Brand	Huawei
Model	GPFD
GPON Port	16-GPON Port
Type	C+ Module : One-fiber bi-directional optical module, class C+
Operating Wavelength	Tx: 1490 nm, Rx: 1310 nm
Encapsulation Type	SFP
Port Rate	Tx: 2.49 Gbit/s, Rx: 1.24 Gbit/s
Minimum Output Optical Power	C+ Module : 3.00 dBm
Maximum Output Optical Power	C+ Module : 7.00 dBm
Maximum Receiver Sensitivity	C+ Module : -32.00 dBm
Optical Connector Type	SC/PC
Optical Fiber Type	Single-mode
Reach	20.00 km
Overload Optical Power	C+ Module : -12.0 dBm
Extinction Ratio	8.2 dB
Dimensions (W x D x H)	22.86 mm x 237.00 mm x 395.40 mm
Power Consumption	H802GPFD : Static: 45 W, Maximum: 73 W
	H803GPFD : Static: 39 W, Maximum: 61 W
	H805GPFD : Static: 26 W, Maximum: 50 W
Maximum Frame Size	2004 bytes
Operating temperature	-25°C to +65°C

GPFD Overview
